Classical Guitar Pickup - KNA NG2-7S Classical Guitar Pickup for 7 Strings with Volume Control
Portable bridge-mounted piezo with volume control for extended-range nylon-string guitar
With onboard volume control, NG-2 7S is a versatile choice for 7-string classical guitar players who need a piezo pickup to transfer the natural sound of their instrument.
Live or in the studio, it's a classical guitar pickup that brings true nylon-string sound and does it without an installation that requires modification.
Features:
Install with no modification

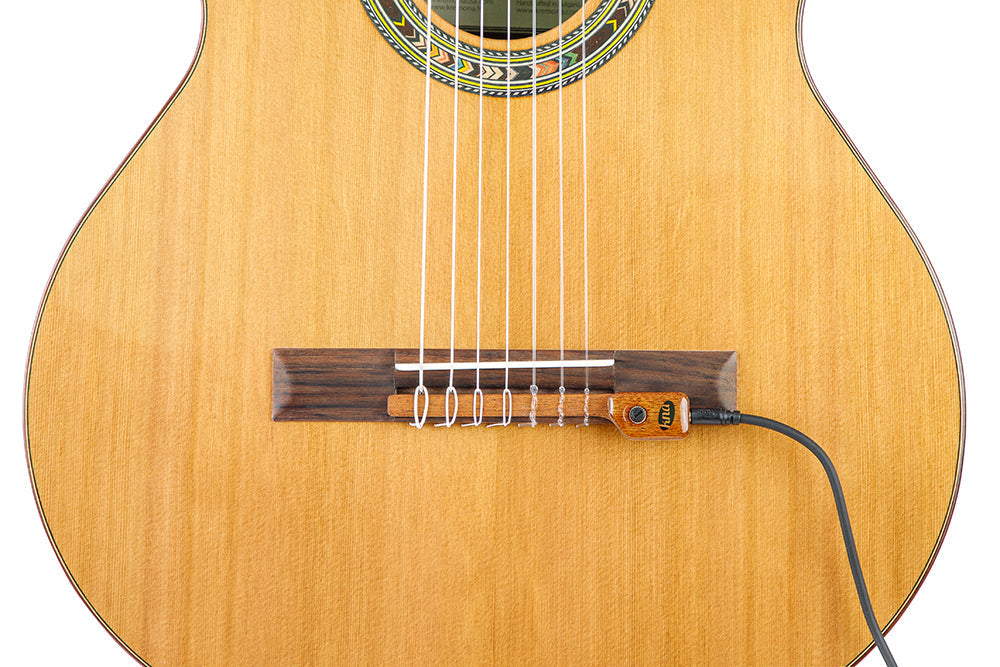

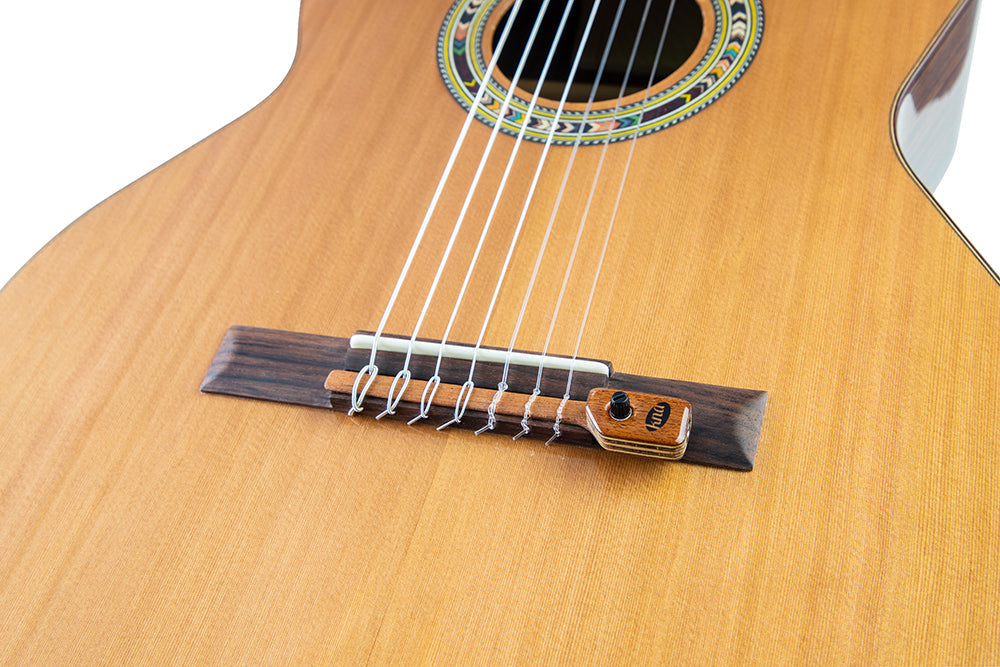

Unlike other guitar pickups, NG-2 7S installs safely and securely on the 7-string classical or flamenco guitar tie block utilizing the tension of the strings.
Onboard volume control
Players can control their output signal while onstage or in the studio, right from the pickup-mounted volume knob.
Wood case

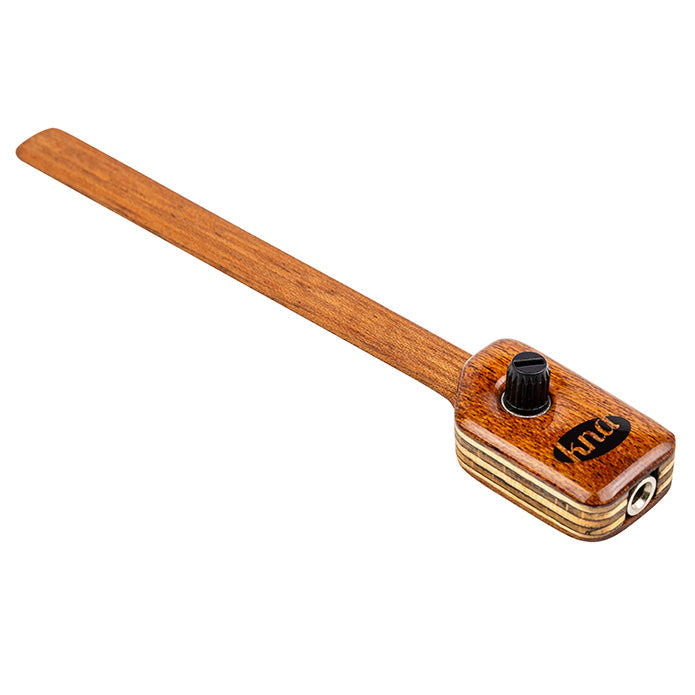

The piezo element is encased in elegant and stylish mahogany. The lightweight assembly offers maximum tonal sensitivity.
Natural sound
NG-2 7S has a passive design that reproduces the natural sound of the instrument with no need for a battery.
Complete set

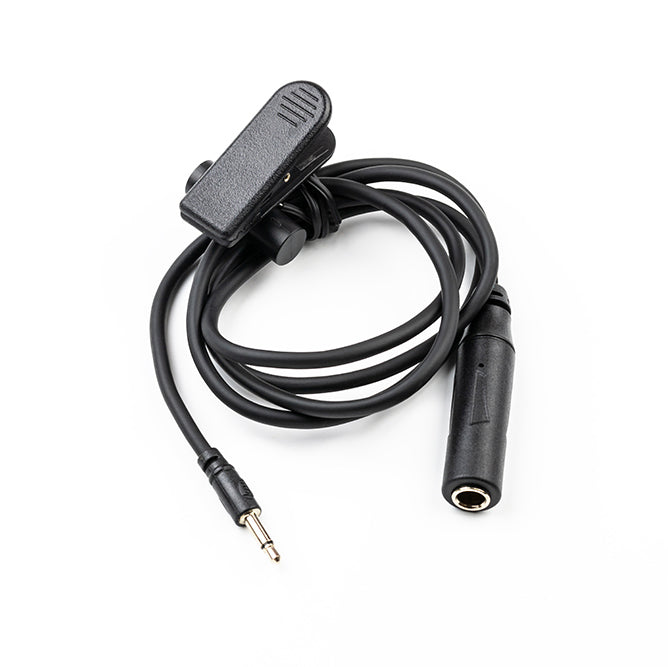

Two cables are included — one 9-ft. 1/8" to 1/4" and one 3-ft. 1/8" to female 1/4" jumper with safety clip to connect with your instrument cable.
DOWNLOAD INSTALLATION INSTRUCTIONS HERE
| Specifications | |
| Weight | 5g. / 0.176oz |
| Overall length | 124 mm / 4.88" |
| Height / jack housing | 16.3 mm / 0.64" |
| Active element measurements | |
| Length | 90mm / 3.54" |
| Width | 9.6mm / 0.38" |
|
Thickness |
2mm ± 0.05mm 0.079" ± 0.002" |
| Wood | Mahogany |
| Maximum Impedance | 500 ã_ |
| Cables | |
| Jumper cable with safety clip |
1meter / 3' |
| Amp Cable |
3meter / 9' |
